Higher Pressure Fittings and Nozzles

High Pressure Nozzles & Fittings

Nickel Plated Fast Slip Connected Brass Fittings

Nickel Plated Brass Fittings

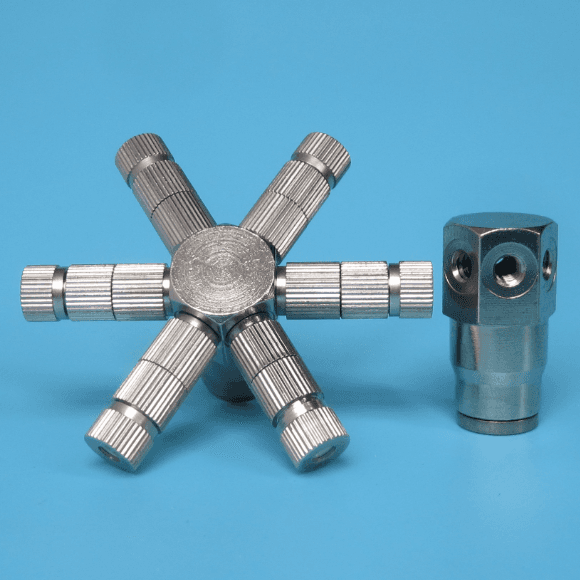

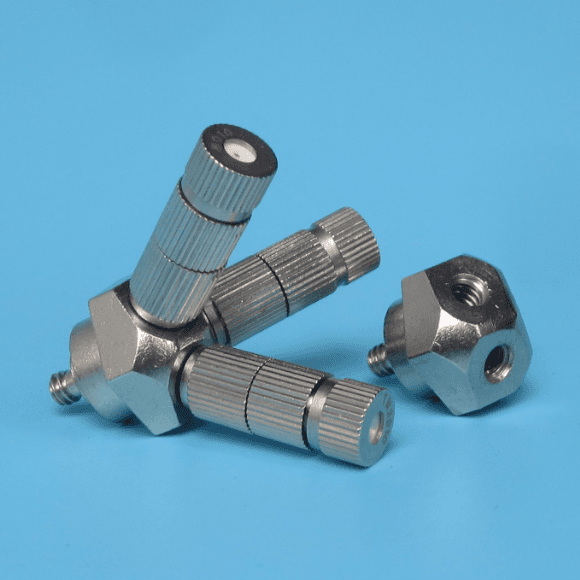

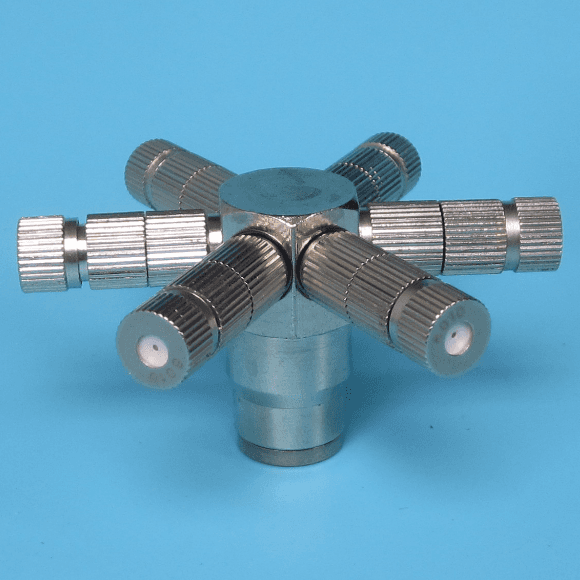

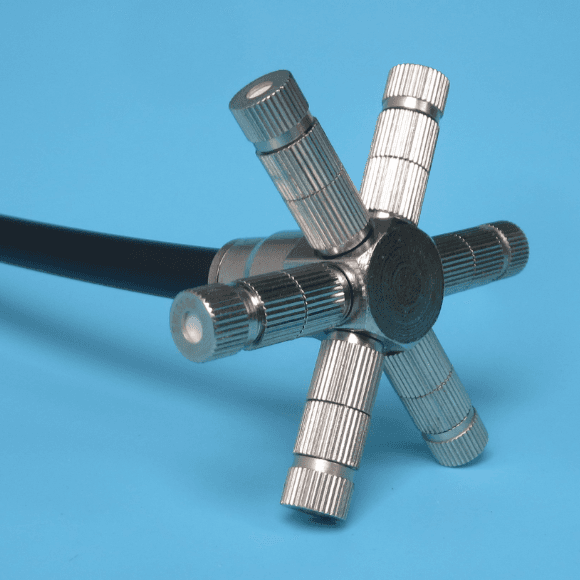

End Cap w. nozzles

NS-OD-C216 1/4" (6.3mm)
NS-OD-C316 3/8" (9.5mm)
M8 thread standard, other available!
Learn More

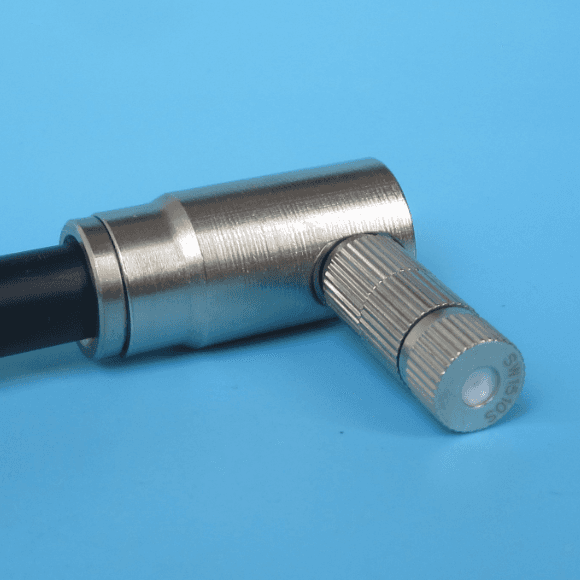

End Cap w. single nozzle

NS-OD-C215 1/4" (6.3mm)
NS-OD-C315 3/8" (9.5mm)
M8 thread standard, other available!
Learn More

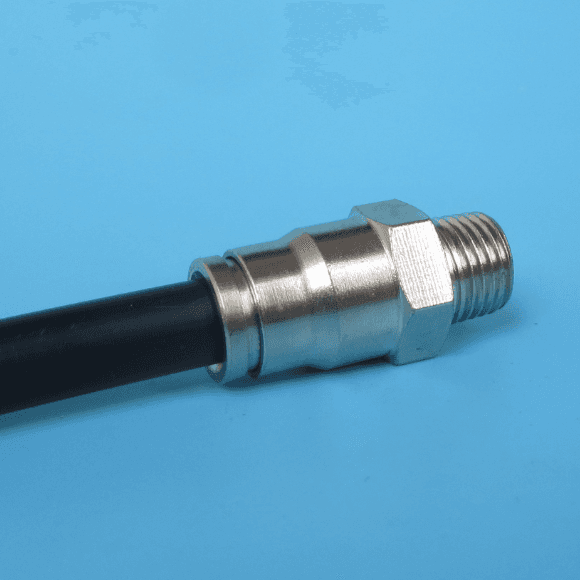

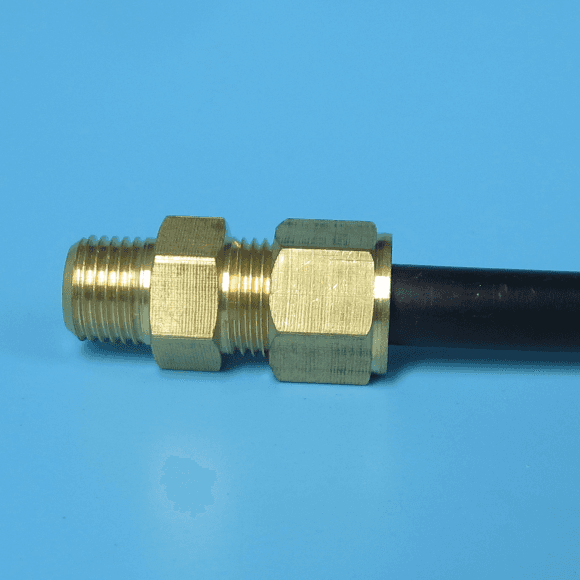

1/4" NPT male

NS-OD-C214 1/4" (6.3mm)
NS-OD-C314 3/8" (9.5mm)
Learn More

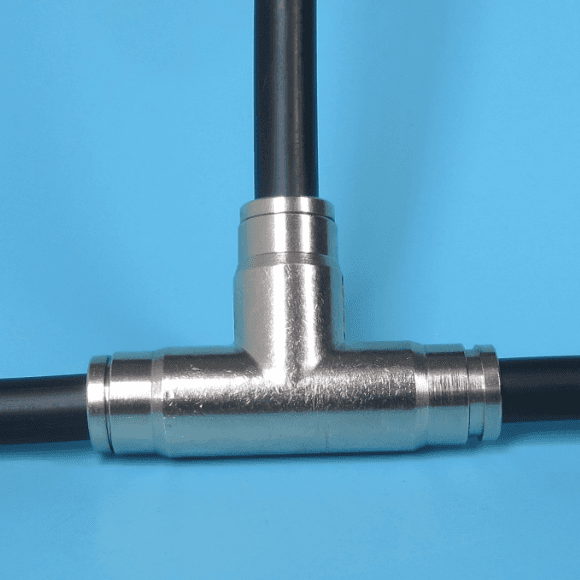

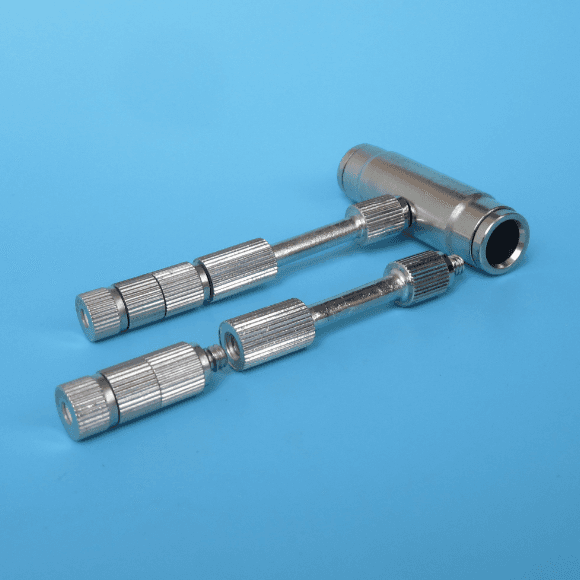

Tee

NS-OD-C208 1/4" (6.3mm)
NS-OD-C308 3/8" (9.5mm)
Learn More

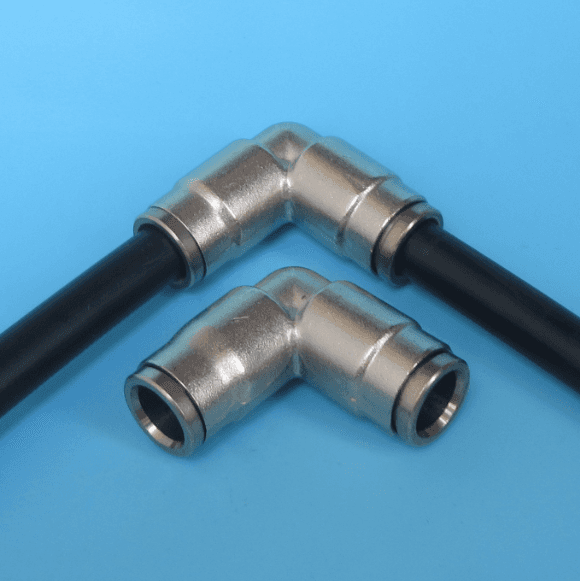

Elbow

NS-OD-C207 1/4" (6.3mm)
NS-OD-C307 3/8" (9.5mm)
Learn More
End Cap

NS-OD-C205 1/4" (6.3mm)
NS-OD-C305 3/8" (9.5mm)
Learn More

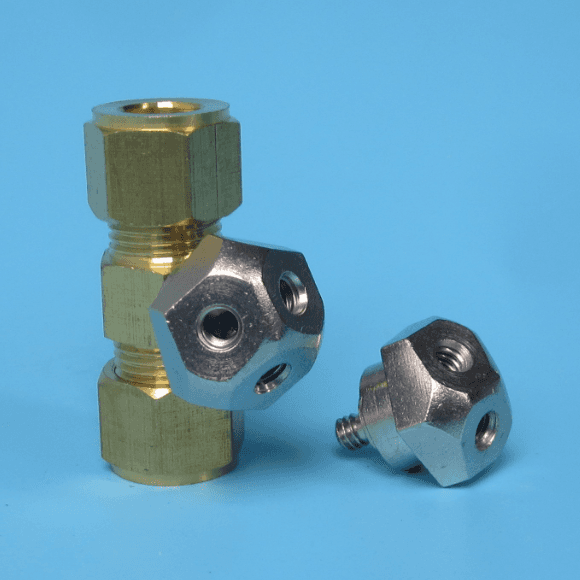

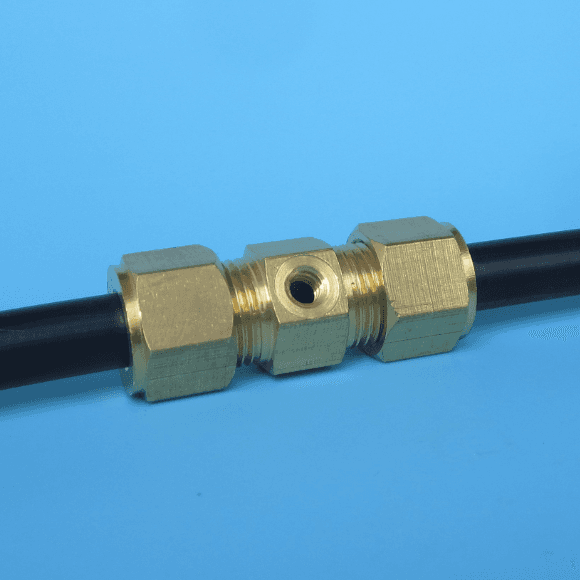

Splice with single nozzle

NS-OD-C201 1/4" (6.3mm)
NS-OD-C301 3/8" (9.5mm)
M8 thread standard, other available!
Learn More

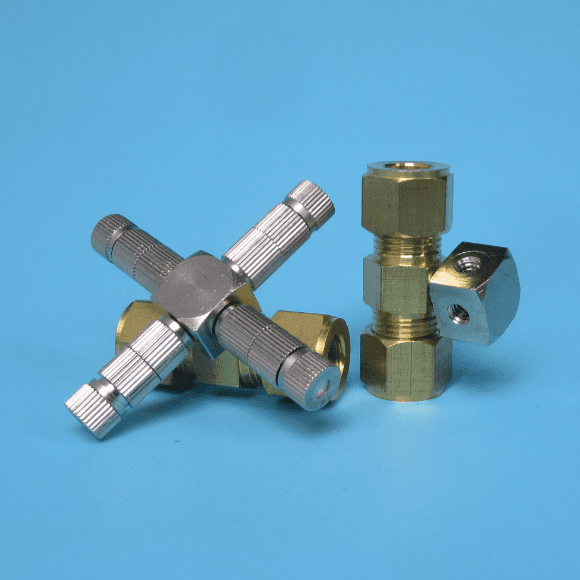

Splice with dual nozzles (180)

NS-OD-C202 1/4" (6.3mm)
NS-OD-C302 3/8" (9.5mm)
M8 thread standard, other available!
Learn More

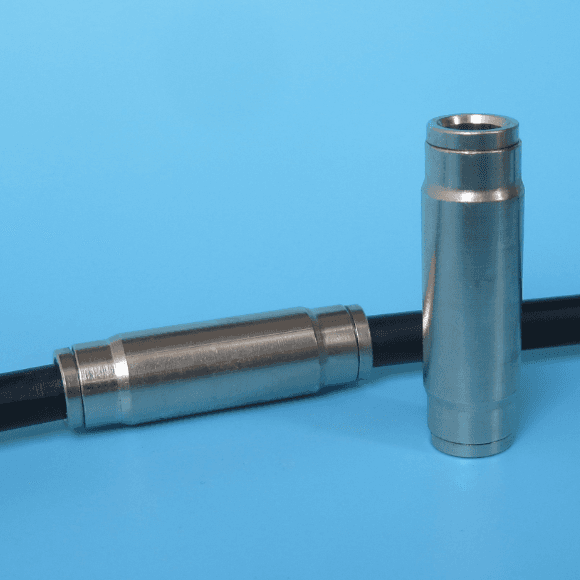

Splice

NS-OD-C200 1/4" (6.3mm)
NS-OD-C300 3/8" (9.5mm)
Learn More
Ferrule Set

OD-C22 1/4" (6.3mm)
OD-C32 1/8" (9.5mm)
Learn More

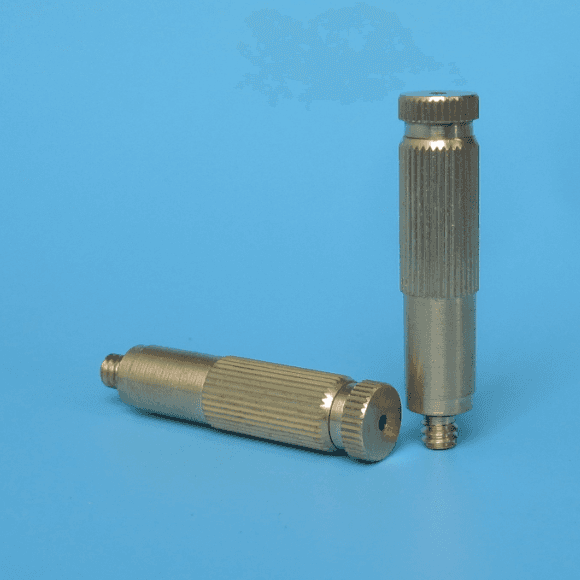

Nozzle Types

Fast Slip Connected Nozzles

Fast slip connect nozzles. These nuzzles are suitable for 1/4" and 3/8"slip connectable fittings

Button nozzles

These are low cost short nozzles, which makes them suitable for places where the physical size of the nozzle matters.

Type D Hexagonal Nozzles

These nozzules are recommended for all high pressure applications. The can include a Leakage Prevention Device (LPD) and/or vortex pipe filter.

Round Type D Nozzle

These nozzles are designed to possibly contain a vortex filter and/or a Leakage Prevention Device (LPD).

Round Type D Nozzles

These nozzles are designed with a capability to contain a Leakage Prevention Device (LPD)

Type T Nozzles

These nozzles are designed with a Leakage Prevention Device (LPD)

Common Nozzle Data

Nozzle Numbering Nomenclature

Nozzle Parts

High Pressure Stainless Steel Pipes

SS095 -R- 3000

3/8" (9.5mm) Outer Diameter. 3000mm maximum standard length with a fast slip retention ring. Other made-to-order shorter lengths are available, in which case the number 3000 will be replaced by the actual desired lengths in mm.

SS095 -S- 3000

3/8" (9.5mm) Outer Diameter. 3000mm maximum standard length. Other made-to-order shorter lengths are available, in which case the number 3000 will be replaced by the actual desired lengths in mm.

SS127-R- 3000

1/2" (12.7mm) Outer Diameter. 3000mm maximum standard length with a fast slip retention ring. Other made-to-order shorter lengths are available, in which case the number 3000 will be replaced by the actual desired lengths in mm.

SS127 -S- 3000

1/2" (12.7mm) Outer Diameter. 3000mm maximum standard length. Other made-to-order shorter lengths are available, in which case the number 3000 will be replaced by the actual desired lengths in mm.
